IP68级别防护密封性更好，良好的密封性能可以阻隔外界的水滴、水源、水汽ip68防水等级是你的放心之选
五大功能防护强大性能， 防水|耐酸碱|抗盐雾|防尘|高绝缘

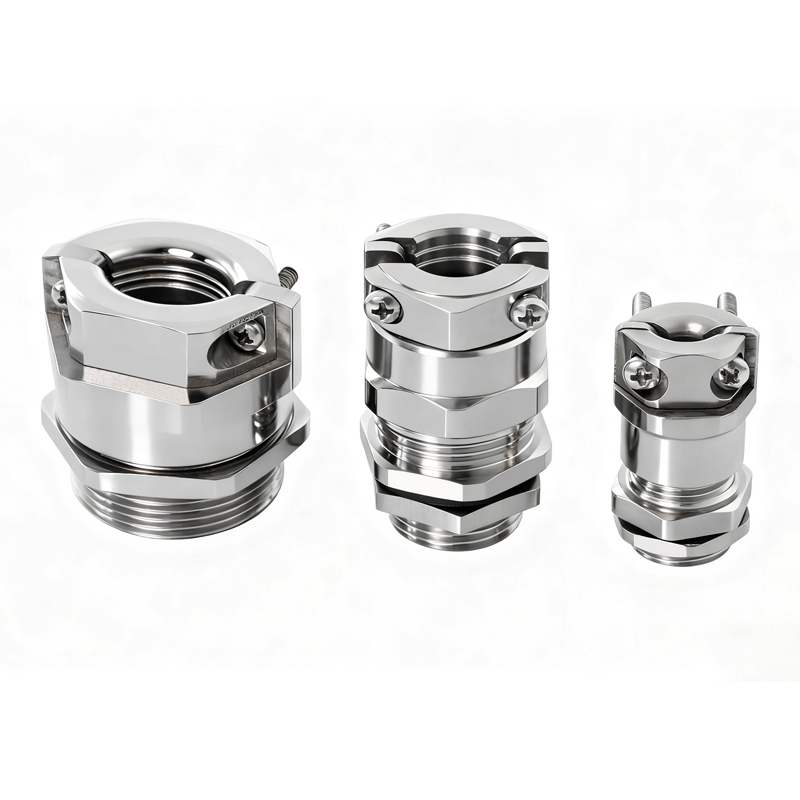

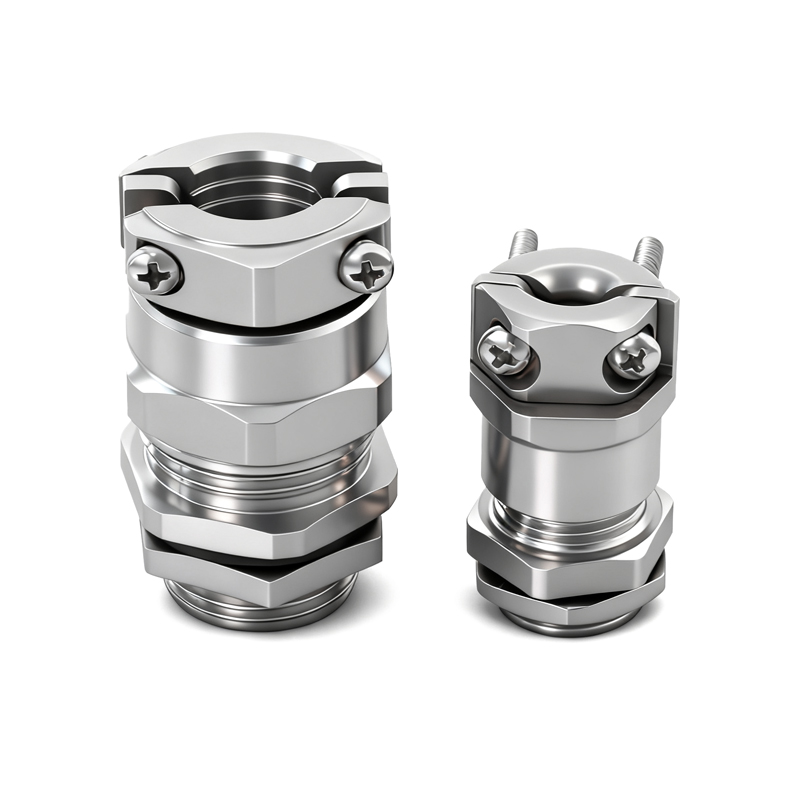

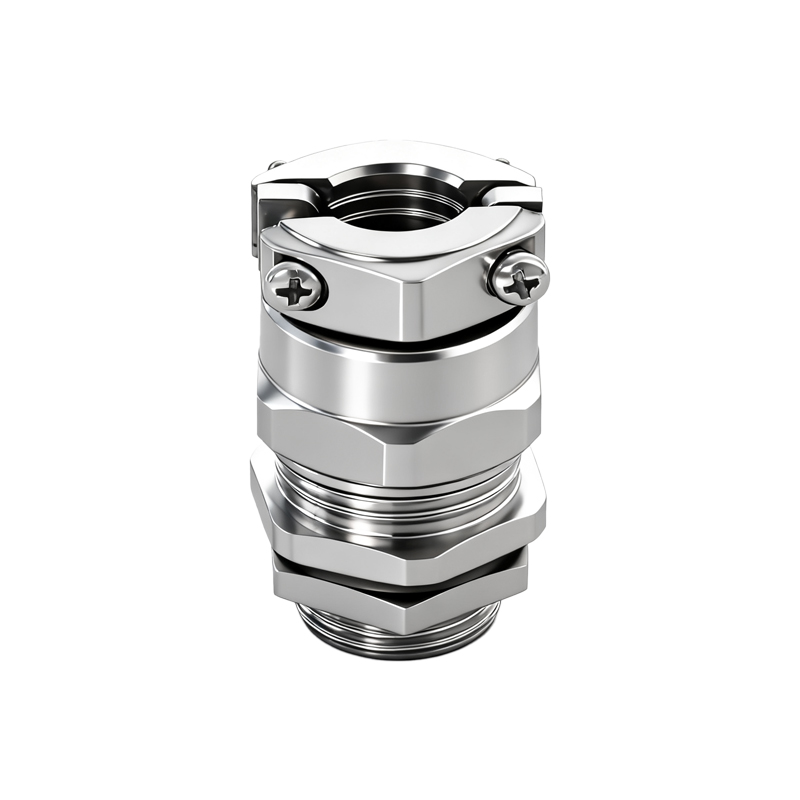

不锈钢材质坚固更可靠，外表光泽|螺纹顺畅|高韧性|抗压力强使用坚固可靠，使用寿命长
产品的使用应用领域， 广泛应用于基站通讯、新能源汽车仪器仪表类、自动化行业等领域
规格齐全都可定制 人性化设计|安装便捷|省时省力|多规格可选适用于各种使用情景
| 型号 Model | 规格 Specification | 卡口范围(mm) Clamping Range | 螺纹外径 AG (mm) | 螺纹长度 GL (mm) | 总高 H(mm) | 扳手尺寸 Wrench Size (mm) |
| YKWS/B-DL-M12 | M12x1.5 | 3~6.5 | 12 | 8 | 26 | 14 |
| YKWS/B-DL-M16 | M16x1.5 | 4~8 | 16 | 8 | 30 | 17/18 |
| YKWS/B-DL-M18 | M18x1.5 | 5~10 | 18 | 9 | 30 | 20 |
| YKWS/B-DL-M20 | M20x1.5 | 6~12 | 20 | 9.5 | 30.5 | 22 |
| YKWS/B-DL-M22 | M22x1.5 | 10~14 | 22 | 9.5 | 30.5 | 24 |
| YKWS/B-DL-M25 | M25x1.5 | 9~16 | 25 | 12 | 30.5 | 27 |
| M25x1.5 | 13~18 | 25 | 12 | 34.5 | 30 | |
| YKWS/B-DL-M27 | M27x1.5 | 13~18 | 27 | 12 | 34.5 | 30 |
| YKWS/B-DL-M28 | M28x1.5(2) | 13~18 | 28 | 12 | 34.5 | 30 |
| YKWS/B-DL-M32 | M32x1.5(2) | 15~22 | 32 | 12 | 36 | 35 |
| YKWS/B-DL-M37 | M37x1.5(2) | 18~25 | 37 | 12.5 | 43 | 40 |
| YKWS/B-DL-M40 | M40x1.5(2) | 18~25 | 40 | 15 | 43 | 45 |
| M40x1.5(2) | 22~30 | 40 | 15 | 43 | 45 | |
| YKWS/B-DL-M47 | M47x1.5(2) | 25~32 | 47 | 15 | 48 | 50 |
| YKWS/B-DL-M50 | M50x1.5(2) | 32~38 | 50 | 15 | 50 | 57 |
| YKWS/B-DL-M54 | M54x1.5(2) | 32~38 | 54 | 15 | 50 | 57 |
| YKWS/B-DL-M60 | M60x1.5(2) | 37~44 | 60 | 15 | 50 | 64/68 |
| YKWS/B-DL-M63 | M63x1.5(2) | 37~44 | 63 | 15 | 50 | 64/68 |
| 型号 Model | 规格 Specification | 卡口范围(mm) Clamping Range | 螺纹外径 AG (mm) | 螺纹长度 GL (mm) | 总高 H(mm) | 扳手尺寸 Wrench Size (mm) |
| YKWS/B-DL-PG7 | PG7 | 3~6.5 | 12.5 | 8 | 26 | 14 |
| YKWS/B-DL-PG9 | PG9 | 4~8 | 15.2 | 8 | 30 | 17/18 |
| YKWS/B-DL-PG11 | PG11 | 5~10 | 18.6 | 9 | 30 | 20 |
| YKWS/B-DL-PG13.5 | PG13.5 | 6~12 | 20.4 | 9.5 | 30.5 | 22 |
| YKWS/B-DL-PG16 | PG16 | 10~14 | 22.5 | 9.5 | 30.5 | 24 |
| YKWS/B-DL-PG19 | PG19 | 9~16 | 25 | 12 | 30.5 | 27 |
| YKWS/B-DL-PG21 | PG21 | 13~18 | 28.3 | 12 | 34.5 | 30 |
| YKWS/B-DL-PG25 | PG25 | 15~22 | 32 | 12 | 36 | 35 |
| YKWS/B-DL-PG29 | PG29 | 18~25 | 37 | 12.5 | 43 | 40 |
| YKWS/B-DL-PG36 | PG36 | 25~32 | 47 | 15 | 48 | 50 |
| YKWS/B-DL-PG42 | PG42 | 32~38 | 54 | 15 | 50 | 57 |
| YKWS/B-DL-PG48 | PG48 | 37~44 | 59.3 | 15 | 50 | 64/68 |
| 型号 Model | 规格 Specification | 卡口范围(mm) Clamping Range | 螺纹外径 AG (mm) | 螺纹长度 GL (mm) | 总高 H(mm) | 扳手尺寸 Wrench Size (mm) |
| YKWS/B-DL-NPT1/4 | NPT1/4 | 3~6.5 | 13.16 | 8 | 26 | 14 |
| YKWS/B-DL-NPT3/8 | NPT3/8 | 4~8 | 16.67 | 8 | 30 | 17/18 |
| YKWS/B-DL-NPT3/4 | NPT3/4 | 13~18 | 26.45 | 12 | 34.5 | 30 |
| YKWS/B-DL-NPT1 | NPT1 | 18~25 | 33.25 | 12.5 | 43 | 40 |
| YKWS/B-DL-NPT1 1/4 | NPT1 1/4 | 25~32 | 41.9 | 15 | 48 | 50 |
| YKWS/B-DL-NPT1 1/2 | NPT1 1/2 | 32~38 | 47.8 | 15 | 50 | 57 |
| YKWS/B-DL-NPT2 | NPT2 | 37~44 | 59.6 | 15 | 50 | 64/68 |
| 型号 Model | 规格 Specification | 卡口范围(mm) Clamping Range | 螺纹外径 AG (mm) | 螺纹长度 GL (mm) | 总高 H(mm) | 扳手尺寸 Wrench Size (mm) |
| YKWS/B-DL-G1/4 | G1/4 | 3~6.5 | 13.16 | 8 | 26 | 14 |
| YKWS/B-DL-G3/8 | G3/8 | 4~8 | 16.67 | 8 | 30 | 17/18 |
| YKWS/B-DL-G1/2 | G1/2 | 6~12 | 20.96 | 9.5 | 30.5 | 22 |
| YKWS/B-DL-G3/4 | G3/4 | 13~18 | 26.45 | 12 | 34.5 | 30 |
| YKWS/B-DL-G1 | G1 | 18~25 | 33.25 | 12.5 | 43 | 40 |
| YKWS/B-DL-G1 1/4 | G1 1/4 | 25~32 | 41.9 | 15 | 48 | 50 |
| YKWS/B-DL-G1 1/2 | G1 1/2 | 32~38 | 47.8 | 15 | 50 | 57 |
| YKWS/B-DL-G2 | G2 | 37~44 | 59.6 | 15 | 50 | 64/68 |
| 注：依据客户安装要求，可提供螺纹长度GL加长以及螺纹定制 Note: According to customer installation requirements, thread length GL extension and thread customization can be provided | ||||||
