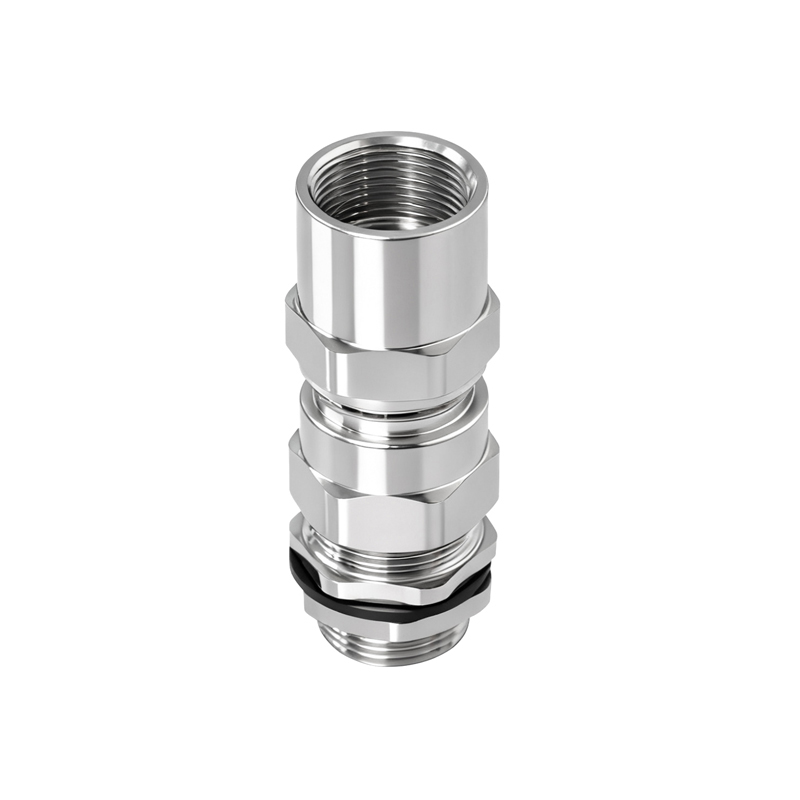

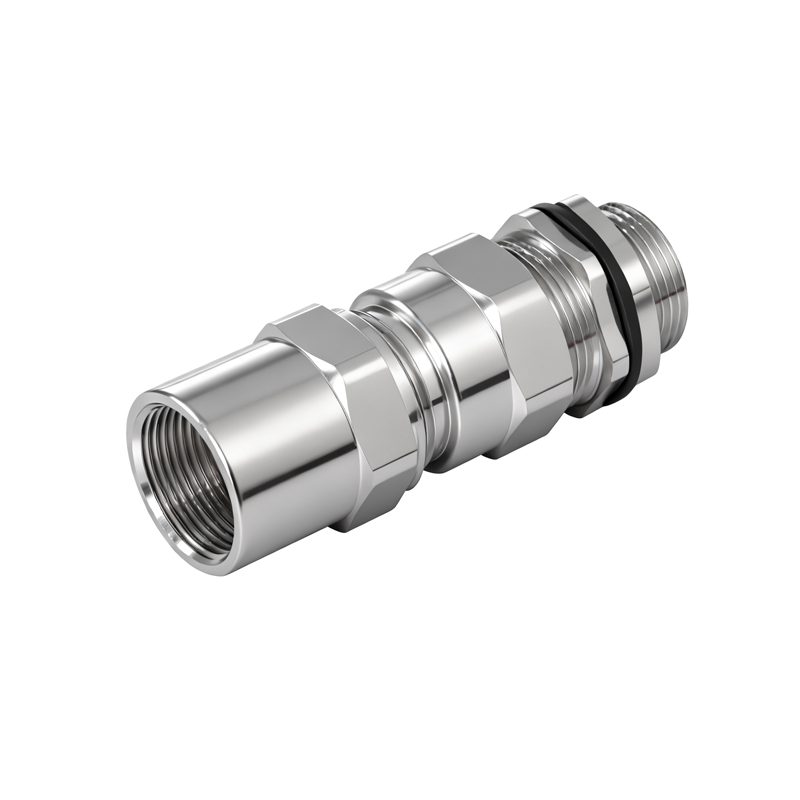

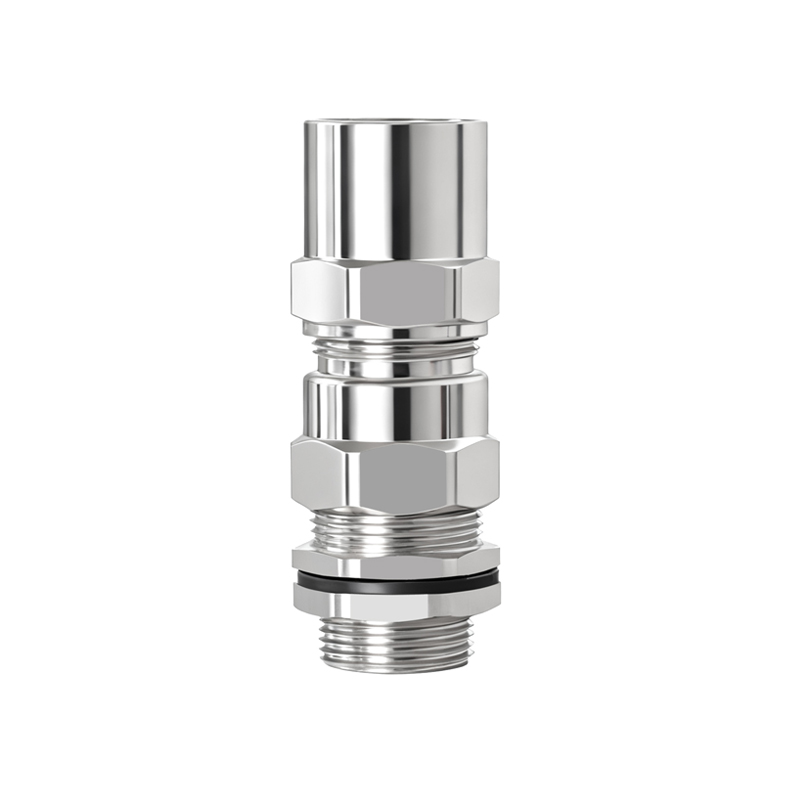

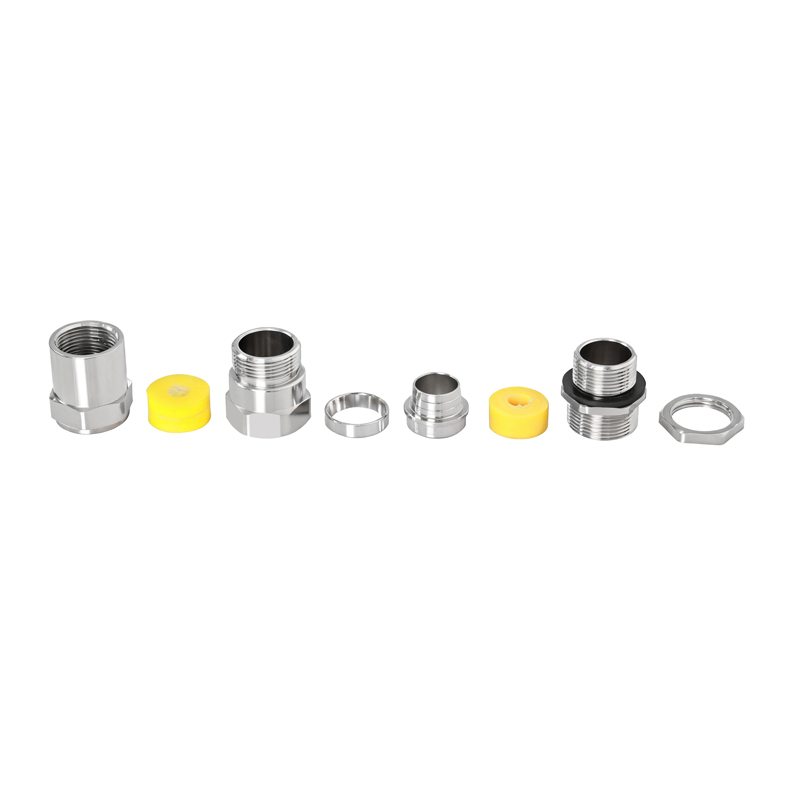

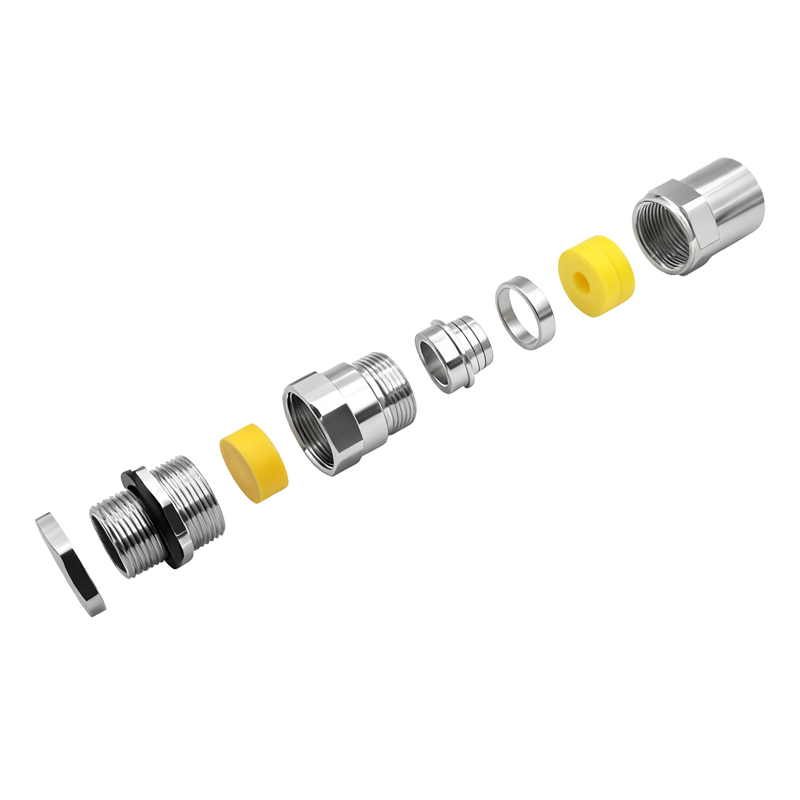

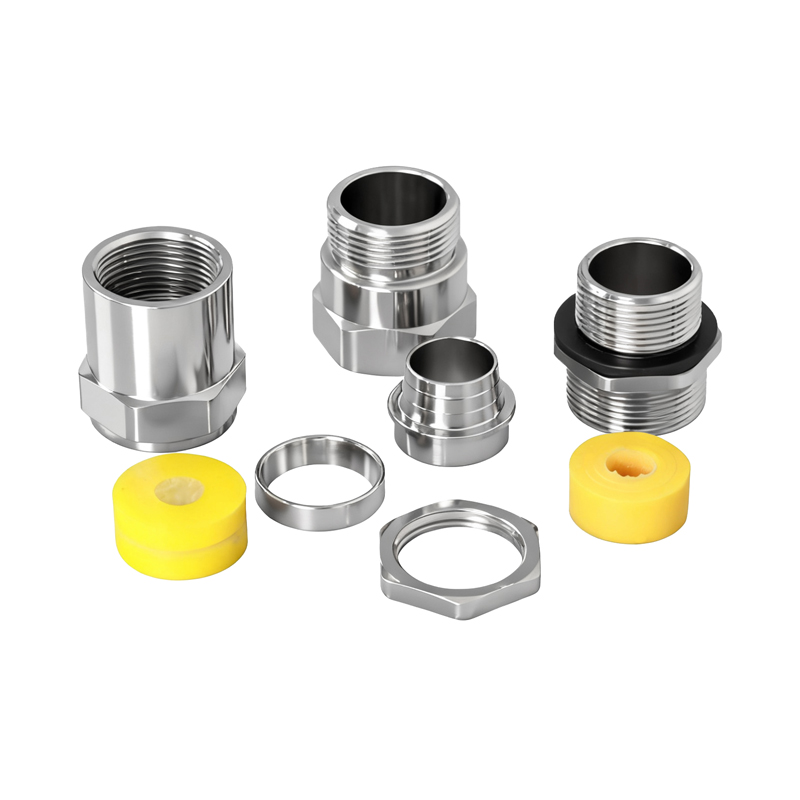

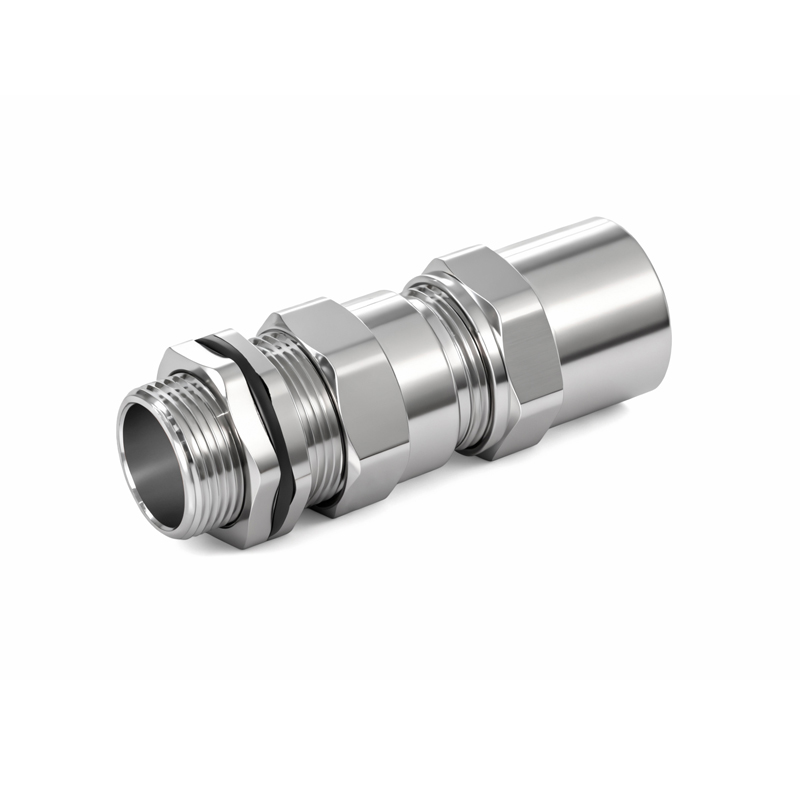

| 型号 Model | 公制 M thread | 英制 G thread | 电缆外径范围 Cable outer diameter range | 螺纹长度 GL (mm) | 总高 H(mm) | 产品最大外径 Max. OD φ | 标准螺纹 Standard thread | 铠装层厚度 Armor layer thickness h(mm) | |||
| 出线 Outer line | 可选出线 Choose outer line | 进线 Iner line | 公制 M | 管螺纹 G | |||||||
| YKWS/B-EXII/2-M20 | M20x1.5 | G1/2 | 4~8 | — | 5.5~12 | 15 | 94 | 30 | M20x1.5 | G1/2 | 0.3~1.0 |
| M20x1.5 | G1/2 | 6.5~10.5 | — | 9.5~16 | 15 | 94 | 30 | M20x1.5 | G1/2 | 0.3~1.0 | |
| M20x1.5 | G1/2 | 10~14.5 | 6~12 | 12.5~20.5 | 15 | 94 | 30 | M25x1.5 | G3/4 | 0.3~1.0 | |
| YKWS/B-EXII/2-M25 | M25x1.5 | G3/4 | 10~14.5 | 6~12 | 12.5~20.5 | 15 | 98 | 37 | M25x1.5 | G3/4 | 0.3~1.0 |
| M25x1.5 | G3/4 | 12.5~19.5 | 9~15 | 17~26 | 15 | 103 | 37 | M32x1.5 | G1 | 0.4~1.2 | |
| YKWS/B-EXII/2-M32 | M32x1.5 | G1 | 12.5~19.5 | 9~15 | 17~26 | 19 | 106 | 45 | M32x1.5 | G1 | 0.4~1.2 |
| M32x1.5 | G1 | 19~25.2 | 14~22 | 22~33 | 19 | 110 | 45 | M40x1.5 | G1-1/4 | 0.4~1.4 | |
| YKWS/B-EXII/2-M40 | M40x1.5 | G1-1/4 | 19~25.2 | 14~22 | 22~33 | 19 | 116 | 55 | M40x1.5 | G1-1/4 | 0.6~1.9 |
| M40x1.5 | G1-1/4 | 25~31 | 19~28 | 28~41 | 19 | 121 | 55 | M50x1.5 | G1-1/2 | 0.6~2.2 | |
| YKWS/B-EXII/2-M50 | M50x1.5 | G1-1/2 | 25~31 | 19~28 | 28~41 | 19 | 126 | 65 | M50x1.5 | G1-1/2 | 0.8~2.3 |
| M50x1.5 | G1-1/2 | 31.5~37 | 26~33 | 36~52.5 | 19 | 130 | 65 | M63x1.5 | G2 | 0.8~2.3 | |
| YKWS/B-EXII/2-M63 | M63x1.5 | G2 | 31.5~37 | 26~33 | 36~52.5 | 19 | 149 | 77 | M63x1.5 | G2 | 0.9~2.4 |
| M63x1.5 | G2 | 42.5~49 | 39~46.5 | 46~65 | 19 | 155 | 82 | M75x1.5 | G2-1/2 | 0.9~2.4 | |
| YKWS/B-EXII/2-M75 | M75x1.5 | G2-1/2 | 42.5~55 | 39~46.5 | 46~65 | 19 | 160 | 93 | M75x1.5 | G2-1/2 | 0.9~2.4 |
| M75x1.5 | G2-1/2 | 54.5~64 | 48~58 | 57~78 | 19 | 175 | 110 | M90x2 | G3 | 0.9~2.4 | |
| YKWS/B-EXII/2-M90 | M90x1.5 | G3 | 63~75 | — | 68~88 | 19 | 180 | 121 | M115x2 | G4 | 0.9~2.8 |
| YKWS/B-EXII/2-M115 | M115x1.5 | G7 | 75~90 | — | 83~103 | 19 | 195 | 137 | M125x2 | G4-1/2 | 0.9~2.8 |
| 注：依据客户安装要求，可提供螺纹长度GL加长以及螺纹定制 Note: According to customer installation requirements, thread length GL extension and thread customization can be provided | |||||||||||
